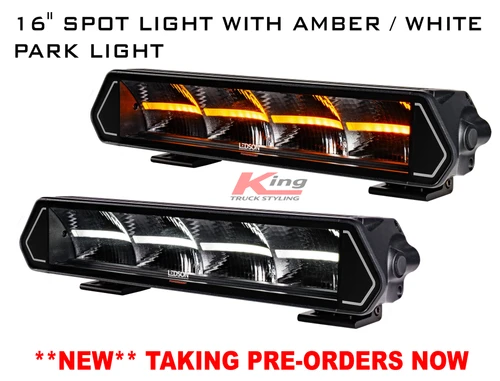

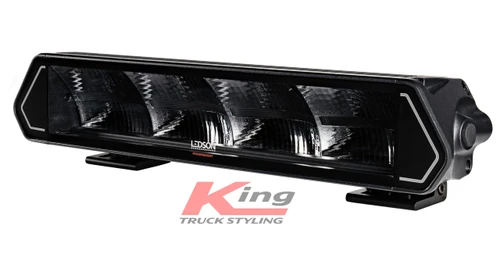

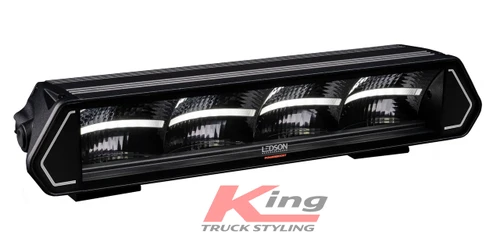

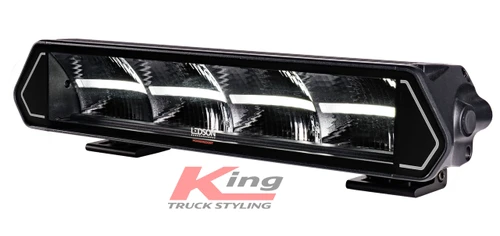

LEDSON Epix16+ XL LED Spot Light Bar With Amber Strobe Beacon 140W 11,500 lumens
Epix16+ XL is a powerful and elegant LED bar with an integrated warning light, featuring both synchronisable and alternating flash patterns for enhanced visibility and flexibility. Developed for mounting above the windscreen or in the grille of trucks, it is ideal for positions where both long-range performance and design play a crucial role.
With an impressive beam pattern and powerboost function, it delivers maximum illumination when you need it most, while remaining E-approved for legal on-road use. A stylish position light with dynamic start-up illumination adds an exclusive touch.
The bar is available in two versions, with or without an integrated warning light, and this function can be synchronised with other Ledson auxiliary lights. Installation is simplified by smart cable clips that neatly conceal the wiring within the rear heat sink.
Epix16+ XL is a perfect combination of performance, functionality and design.
Specifications:
-
Selectable E-approved mode / powerboost mode
-
Five different flash patterns, including one ECE R65-approved pattern
-
Synchronisable and alternating warning light
-
Range at 1 lux: 237 m (R149)
-
Range at 1 lux in powerboost mode: 653 m
-
Lumens: powerboost 11,500 (actual 9,200)
-
E-marking: R149 (reference value 12.5) / R148 (white position light, ECE R65-approved warning light)
-
Selectable position light: white or orange
-
Beam pattern: driving beam (wide and elongated)
-
EMC protected: ECE R10
-
Colour temperature: neutral white light (5000K)
-
Cable with 6-pin DT connector
-
Compatible with Ledson Connect (sold separately)
-
Power: 140 W (4 × 35 W LEDs)
-
IP rating: IP69K
-
Power consumption: 0.9 A @ 12 V and 0.5 A @ 24 V (R149)
-
Power consumption in powerboost mode: 11.1 A @ 12 V and 5.1 A @ 24 V
-
Voltage: 9-36 V
-
Side-reflective optical system
-
Aluminium housing
-
Polycarbonate lens
-
Electronic thermal management
Dimensions:
- Width: 410 mm
- Height: 75 mm
- Depth: 85 mm
- Weight: 2.1 kg
